OS 4 Up™ multifunction pedal

Intuitive pedal control,
defined by you.

With linear, dual-linear, and easyVit modes, the multifunction pedal of the OS 4 Up can be tailored to your preferred way of working*.

Foot pedal unit for OS 4 Up
Pedal control

Versatile pedal control
for different surgical workflows

easyVit: easyVit is a new pedal control mode for vitreoretinal surgery. All planned phases of a PPV can be performed with a linear pedal movement without switching programs.

Discover easyVitarrow-right

Integrated laser control: OS 4 Up is available with an integrated endolaser that can be operated via the multifunction pedal, which also serves as a laser pedal for fast availability and convenient control*.

More about laserarrow-right

Wireless: The wireless multifunction pedal allows flexible placement in the OR with up to 50 hours runtime without charging*.

Over 100 configuration options: Quick and easy program and function changes support fast switching between applications and access to individual colour settings*.

50 user profiles: Up to 50 user profiles can be stored and accessed instantly*.

Foot pedal unit for OS 4 Up
Foot pedal unit for OS 4 Up

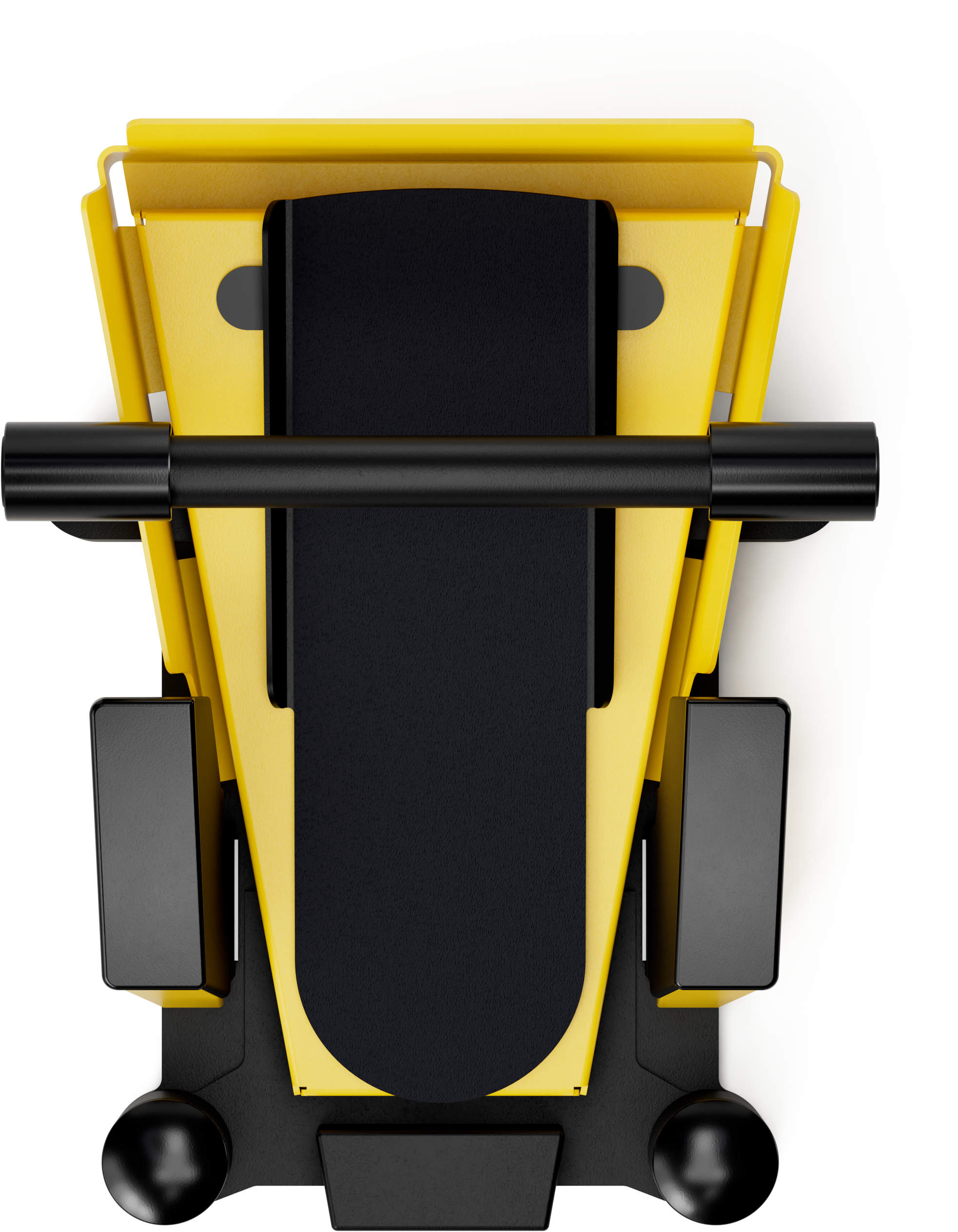

overview foot pedal unit for OS 4 Up

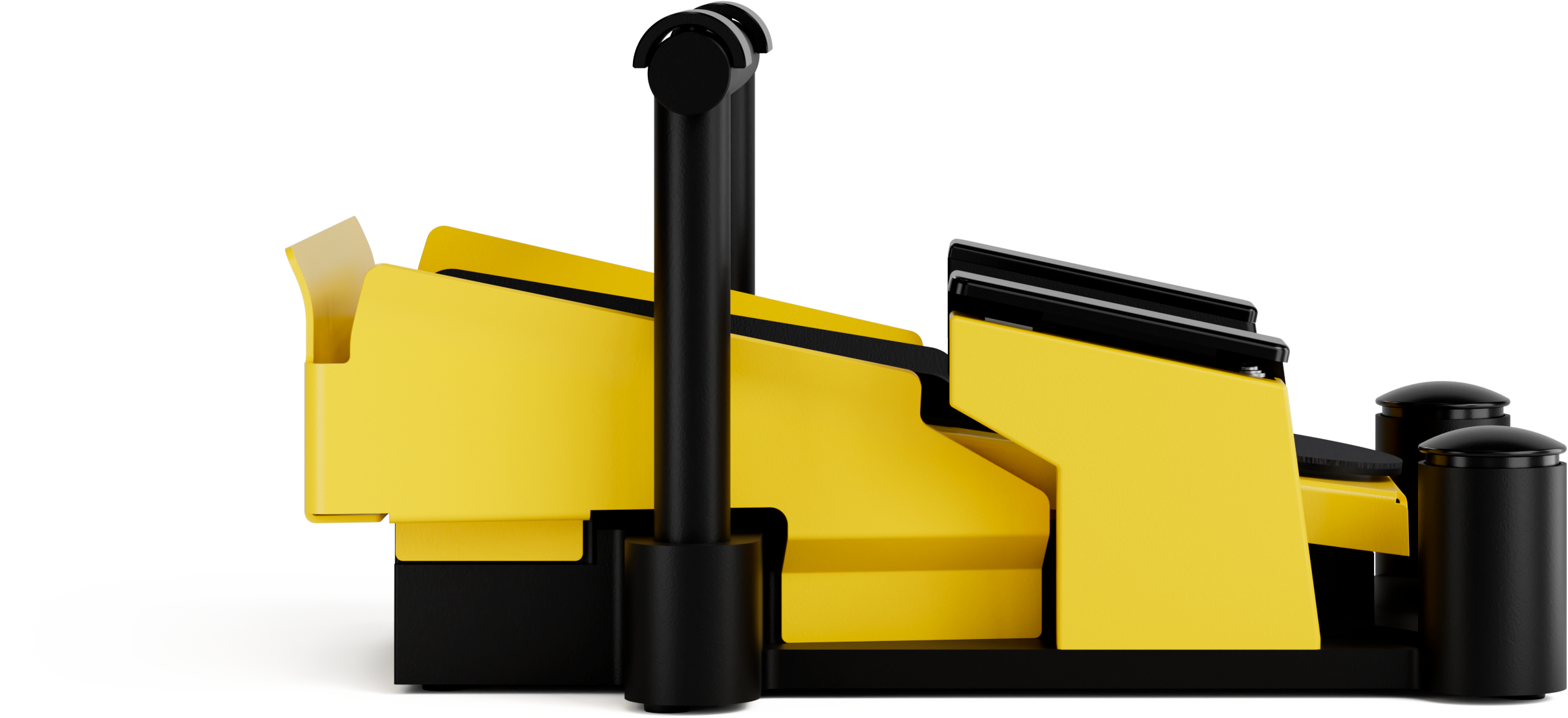

side view foot pedal unit for OS 4 Up
Detailed rendering of the OS 4 Up foot pedal with highlighted components and callout placeholders indicating different control elements

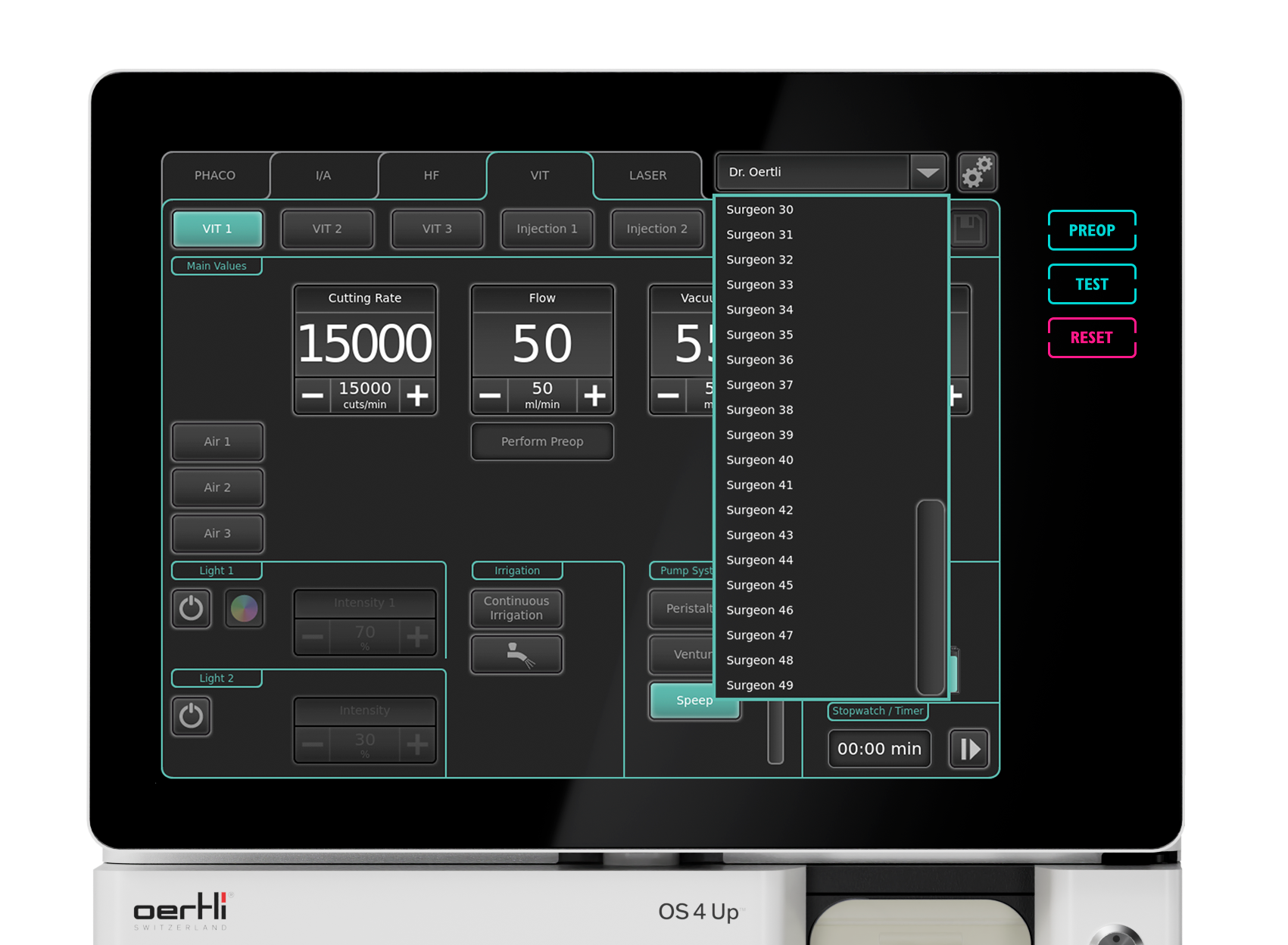

Selecting user profile on a touch display to load personalised surgical settings
Pedal control

Tailor your surgical experience

  • Illustration of the easyVit foot pedal showing a single linear pedal movement with defined positions from 0 to 3 indicated along the stroke

    easyVit control for Pars Plana Vitrectomy

    easyVit is a new pedal control mode for vitreoretinal surgery. It combines aspiration and cut rate in a single linear pedal movement, so planned PPV phases can be performed without changing programs.

    arrow-right

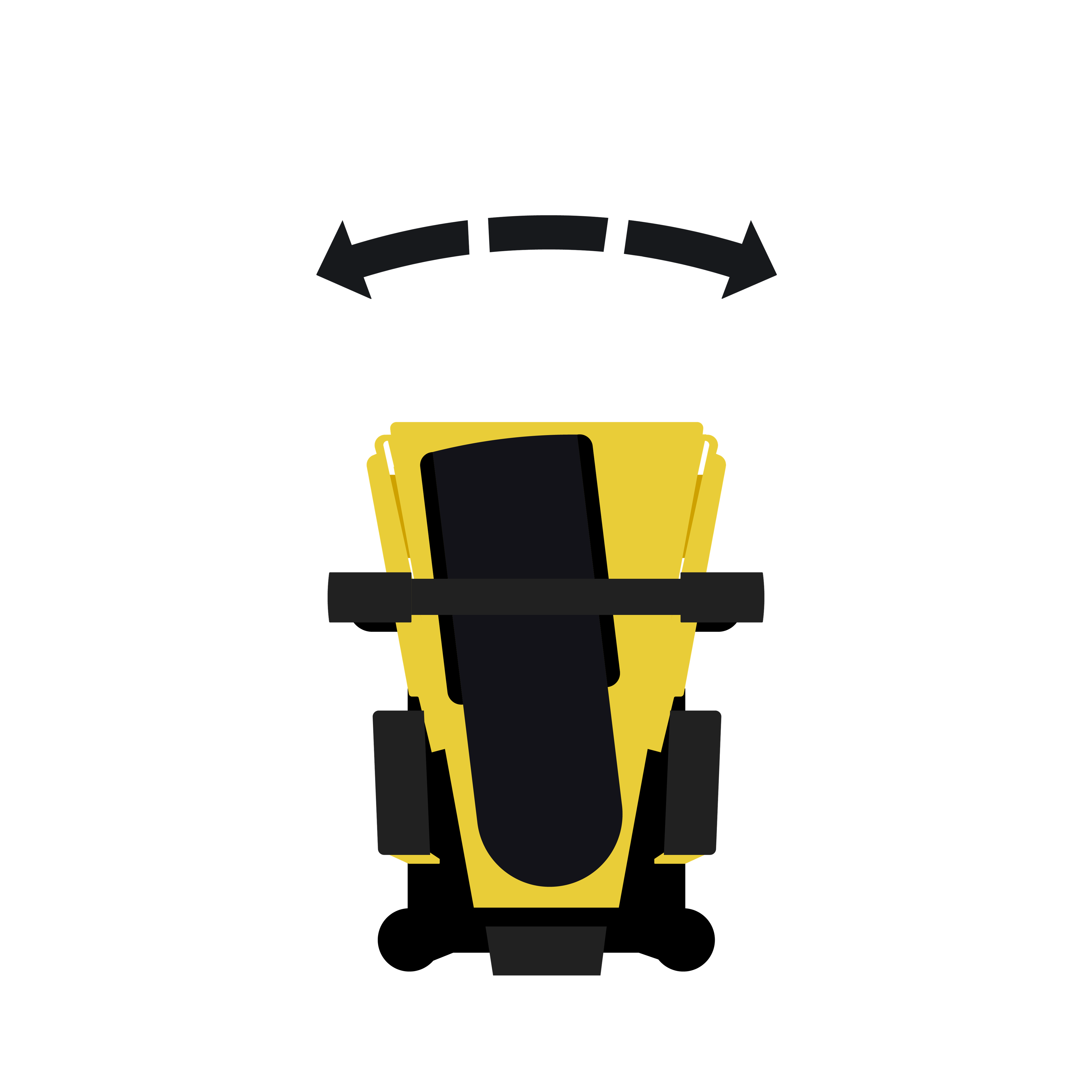

  • Illustration of a dual linear foot pedal showing lateral side to side control movement indicated by arrows

    Dual-linear pedal control

    The pedal moves both vertically and horizontally, allowing the surgeon to control two different functions simultaneously and independently.

  • Graphic illustrating linear pedal control with smooth, proportional movement of the foot pedal

    Linear pedal control

    A single linear pedal movement provides direct control of the assigned function. The further the pedal is depressed, the higher the output.

Pars Plana Vitrectomy

How easyVit supports PPV

Watch the video to learn how easyVit supports all planned phases of a PPV, from core vitrectomy to shaving on attached or detached retina.

easyVit feature demonstrating simplified vitreoretinal workflow while eye surgery
Animation of vitrectomy foot pedal showing continuous irrigation and surgical functions controlled by a single linear pedal movement
Diagram illustrating safety zone and dynamic zone in vitreoretinal surgery, showing instrument positioning relative to detached or attached retina
Pedal settings

Define the values with easyVit

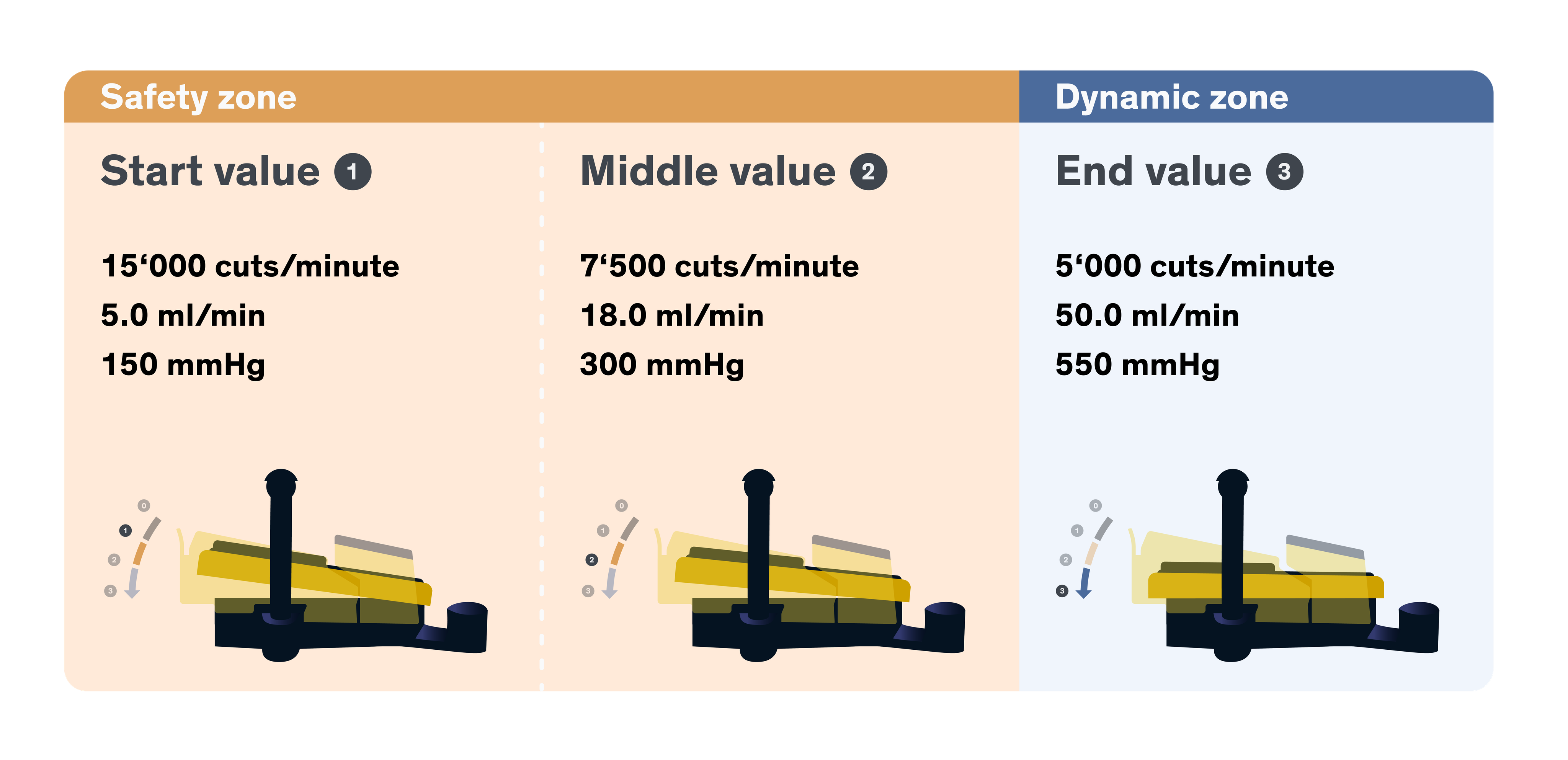

With easyVit, you control aspiration, flow, and cut rate simultaneously via a single linear pedal movement. The pedal path is divided into three sections, each with individually defined parameter values for different phases of PPV, such as core vitrectomy or shaving.

diagram of easyvit technology with foot pedal
Oertli community

Why the pedal makes the difference

«What I like most is the footswitch: not only is the laser integrated, it also allows me to change the light settings with my pedal to enhance visibility and play with the contrast. My absolute favourite feature of the pedal is the luxury of being able to switch between fluid and air (and back, and back again...) with my foot.» (D)

Prof. Kai Januschowski
Eye Clinic Mount St Peter Trier, Germany

Portrait of Prof Dr med Kai Januschowski from Augenklink St Petersburg, Germany, smiling in clinical attire against a dark background
FAQ

In a nutshell about OS 4 Up pedal

In focus

Selected highlights
of the OS 4 Up

  • frontal view of the OS 4 Up ophthalmic system

    Designed for your comfort

    The OS 4 Up also comes with a host of new usability features. With its 17" control panel, wide viewing angle, and clear user interface, the OS 4 Up is ready in under 30 seconds while providing the confident handling you deserve for a smooth surgical workflow.

    arrow-right

  • Configure the OS 4 Up with or without endolaser

    Why compromise when you can customise? Whether you rely on the convenience of an integrated 532 nm endolaser or prefer the platform without laser functionality, the choice is yours.

    arrow-right

  • See the finest tissue structures with Power LED Plus

    With Power LED Plus, you can individually adjust both colour spectrum and light intensity to reveal even the finest tissue structures. Mix yellow and blue as desired to achieve high-resolution contrast viewing.
